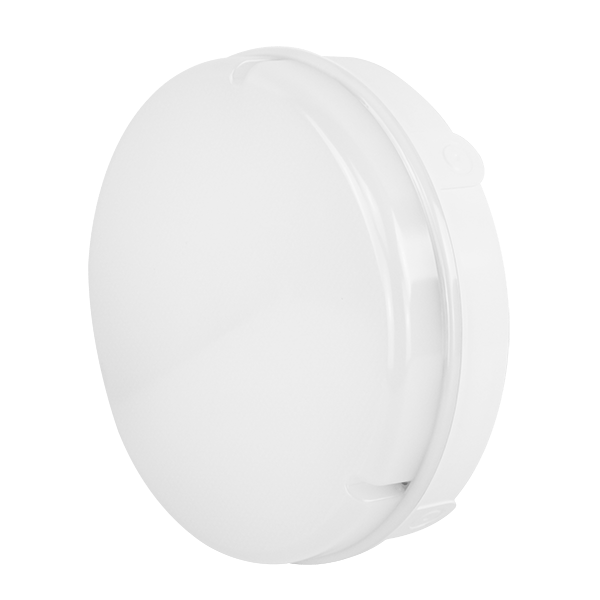

12W LED Bulkhead With Knockouts Standard CCT Switchable - White

OV9300WH12
Features
  • Correlated Colour Temperature adjustable (Warm White, Cool White, Daylight)
  • IP65 rated
  • IK08 rated
  • 4 x 20mmØ knockouts
  • Push-fit terminals
  • White finish
Evo
    https://ordering-portal-product-images.s3.eu-west-2.amazonaws.com/OV9300WH12.png
Evo
Exit Zoom
Close Video

12W LED Bulkhead With Knockouts Standard CCT Switchable - White

OV9300WH12
Features
  • Correlated Colour Temperature adjustable (Warm White, Cool White, Daylight)
  • IP65 rated
  • IK08 rated
  • 4 x 20mmØ knockouts
  • Push-fit terminals
  • White finish
Description
Our Utility range offers fast, easy installation with modern design, including pre-installed microwave options for automated control whilst saving energy. It covers retrofit and new installations, providing versatile features such as DALI, switch dim, and analogue dimming. Emergency options ensure compliance with BS 5266-1, offering self-test and DALI for automated monitoring, reducing maintenance costs.
Tech Specs
Dimensions (mm)
280 (Dia.) x 86 (D)
Circuit Power (W)
12
Lumens (lm)
1200/1300/1200
Efficacy (lm/W)
105
CRI
>80
Power Factor
>0.9
Beam Angle (°)
114
LED Lifetime (Hours)
30000
Ingress Protection
IP65
Temp Rating (°C)
-15 to +50
* For more technical information, please
download our technical data below.
Downloads
